Bellfire LTS Level IIIA
Free Shipping On Orders Over $399
Price Match Guarantee
Lifetime Armor Warranty

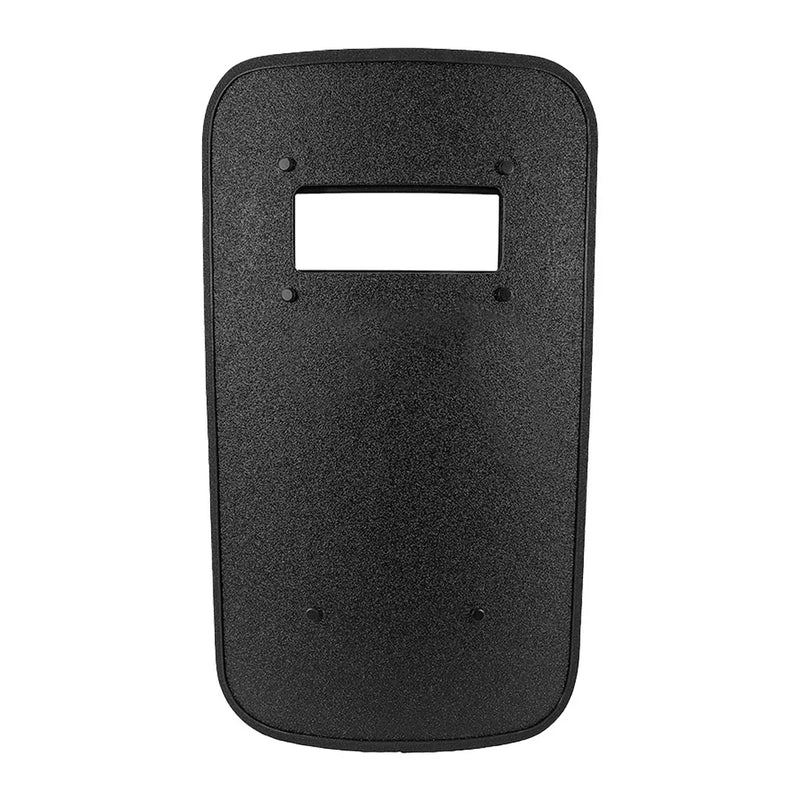

The Bellfire LTS Level IIIA is a Light Tactical Shield engineered from UHMWPE based material. It has been independently tested by an NVLAP accredited laboratory to meet or exceed NIJ Standard 0108.01. This multi-hit shield comes with a C-Handle, a 4x10 ballistic viewport, a shoulder strap, and a carry bag.
This tactical solution provides mission-critical defense for law enforcement and security personnel. The advanced construction ensures durability during operations while maintaining a lightweight profile.
The shield is built for mobility and reliable threat mitigation in the field. High-performance materials allow for superior agility during high-stakes maneuvers and tactical entries.
Features of the Bellfire LTS Level IIIA
- Protection: Level IIIA stand alone against handgun rounds or Level III stand alone against rifle rounds
- NIJ Standard 0108.01 TESTED: This product has been independently tested by an NVLAP accredited NIJ approved laboratory to meet or exceed ballistic resistance as specified under NIJ Standard 0108.01
- Material: UHMWPE based material
- Exterior Cover: Polyurea with Rhino Extreme 1150Fr Anti Spall Coated System
- Ballistic Viewport: 4” x 10”
- Handle: Shield comes standard with HighCom C-Handle which is ambidextrous. The shield does not come standard with a mounted light.
- Multi-hit capability NIJ 0108.01
- Color: Black with transparent viewport
- Quick-release: Shoulder strap and shield carrying bag
- Optional LED Light: multiple options available
- Warranty: 5 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship
Designed for rapid deployment, the shield features an ambidextrous handle system. This allows operators to transition between hands seamlessly, maintaining protection in diverse environments.
The Polyurea finish adds a layer of chemical and abrasion resistance. This ensures the core ballistic materials remain shielded from harsh field environments and rigorous daily usage.
This protective coating is essential for long-term operational viability. It prevents degradation from UV exposure, moisture, and impact during intense training and active duty.
Size and Weight for the Bellfire LTS Level IIIA:
| SIZE | WEIGHT (NO VIEWPORT) | WEIGHT (WITH VIEWPORT) |
|---|---|---|
| 18 x 24 | 5 lbs / 2.4 kg | 8 lbs / 3.6 kg |
| 20 x 34 | 8 lbs / 3.6 kg | 11 lbs / 5.2 kg |
| 20 x 40 | 9 lbs / 4.2 kg | 13 lbs / 5.8 kg |
| 24 x 36 | 10 lbs / 4.5 kg | 13 lbs / 6.1 kg |
| 24 x 48 | 13 lbs / 5.9 kg | 17 lbs / 7.5 kg |
| 24 x 51 | 14 lbs / 6.3 kg | 17 lbs / 7.8 kg |
Professional grade materials ensure that the weight remains manageable without sacrificing coverage. Operators can choose dimensions that best suit their specific tactical requirements.
Level IIIA Threats:
| STANDARD | WEAPON | PROJECTILE | GR | VEL FT/S | VEL M/S | (+/- ft/s) |
|---|---|---|---|---|---|---|
| NIJ 0108.01 | Handgun | .357 Magnum Jacketed Soft Point (JSP) | 158 | 1395 | 425 | (+/- 50) |
| NIJ 0108.01 | Handgun | 9mm Full Metal Jacketed Round Nose (FMJ RN) | 124 | 1400 | 427 | (+/- 50) |
| NIJ 0108.01 | Handgun | .44 Magnum Lead SWC Gas Checked | 240 | 1400 | 427 | (+/- 50) |
| Special | Handgun | 9mm Full Metal Jacketed Round Nose (FMJ RN) | 124 | 1400 | 427 | (+/- 50) |
| Special | Handgun | .40 S&W, Speer Gold Dot Hollow Point (GDHP) | 165 | 940 | 287 | (+/- 50) |
| Special | Handgun | 9mm Luger, Speer Gold Dot II | 147 | 1015 | 309 | (+/- 50) |
| Special | Handgun | 9mm +P+ (SXT) | 127 | 1340 | 408 | (+/- 30) |
| Special | Handgun | .40 S&W JHP, Speer Gold Dot (GDHP) | 180 | 1240 | 378 | (+/- 30) |
| Special | Handgun | 9mm Luger JHP, Speer Gold Dot | 147 | 1136 | 346 | (+/- 50) |
| Special | Handgun | 5.7 x 28mm SS195, Lead Free Hollow Point (LFHP) | 27 | 2000 | 610 | (+/- 30) |
| Special | Handgun | 5.7 x 28mm SS197, Hornady V-Max Blue Tip | 40 | 1790 | 546 | (+/- 30) |
Detailed ballistic testing confirms stopping power against various rounds. The Rhino Extreme coating provides resistance to wear and potential spalling during impact events.
Each unit undergoes rigorous quality control to meet strict safety standards. This ensures that every shield delivered provides the rated ballistic performance expected by professionals.
The included carry bag and shoulder strap aid in organized transport. This setup allows for quick retrieval, ensuring readiness during rapid response scenarios.
Compatible Handles & Lights:
- Bellfire C shield handle (Standard handle for Bellfire LTS)
- Bellfire Ambidextrous shield handle
- FoxFury B30 shield light
- FoxFury B50 shield light
- FoxFury B70 shield handle & light
- Elzetta TriDextrous shield handle & light (strobe optional)
- Elzetta Horizontal shield handle & light (strobe optional)
The system integrates with industry-leading illumination. This ensures visibility and threat identification during low-light entries or indoor tactical maneuvers.
The ballistic viewport provides visual clarity while keeping the operator protected. Its design enables situational awareness without compromising structural integrity.
