26605 SAPI Plates / Mark II Carrier / ACH Helmet

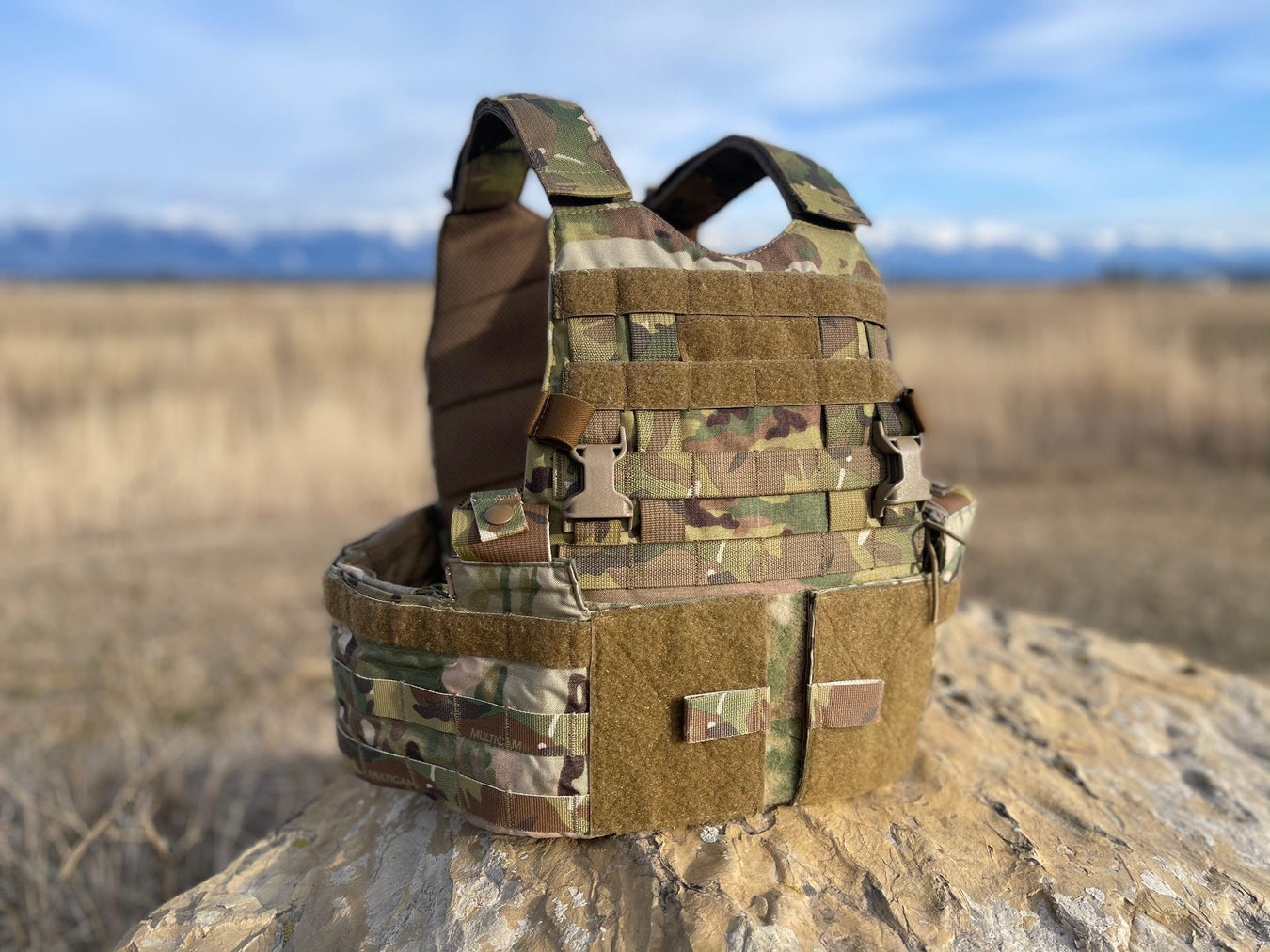

The Mark II Carrier Combo is the perfect civilian body armor solution. The plate carrier platform is highly capable, rugged and minimalistic. The 26605 Series NIJ 06 Certified Level IV is the best performing body armor plate in its class and is made in the USA by LTC, Leading Technology Composites.
This configuration represents the perfect combination of weight, coverage, mobility and functionality.
- 100% Made in the USA
- Top Quality Materials and Construction
- 5 Year Manufacturers Warranty
- Multi-hit Edge to Edge Protection
- Perfect ergonomics
- Guaranteed Performance
- Extremely Durable, High Quality Carrier
- Economical Solution
- Includes (Qty: 2) 26605-19 SAPI plates Size Large and Mark II Carrier
The materials used in the fabrication of the 26605 series allows for projectiles to be absorbed within the body armor plate itself, preventing dangerous spall as is common with steel plates. Don't rely on your carrier to stop high speed bullet fragmentation.
The 26605 is a Triple-curve hard armor, Multi-Hit, Stand Alone, SAPI plate certified under the NIJ 0101.06 Level IV Standard. The multiple geometric contours of the plate design result in one of the most comfortable plates ever created. Manufactured from high-density alumina ceramic core (Al2O3) backed with layered polymer composite fiber. Finished in a Durable Cordura wrap to protect against UV Rays, dirt, dust and water.
All our hard armor plates are Made in the USA by LTC, Leading Technology Composites, the worlds largest and most respected body armor manufacturer.
Specific weights and sizes are listed below. All figures are nominal. Some variation based on manufacturing tolerance may apply.
Some popular sizes/items may require a 6-10 week lead time.
Personal preference is key in plate sizing. If you are on the smaller end of the spectrum listed above choose size medium for a lighter system with less coverage. If you are larger than 6'4" and 250 lbs select size XL.
Sizes:
Small- 8.5”x11.5” 6.5 lbs
Medium- 9.5”x12.50” 7.5 lbs
Large- 10.25”x13.25” 8.5 lbs
XL- 11”x14” 9.75 lbs
SPECS
* Weights and measurements are nominal
Rounds Defeated:
Weapon |
Ammunition |
STRIKING VELOCITY ft/s
|
STRIKING VELOCITY m/s
|
Rifle M-1 |
30.06 AP M2 |
2880 |
878 |
Rifle FN FAL |
7.62x51mm - Ball/AP |
2780 |
847 |
Rifle M-16/AR-15 |
5.56x45mm-M193/M855/ss109 |
3025 |
922 |
Rifle SVD,Dragunov
M.G.-PKM
|
7.62x54R-L/LPS/B-32 API |
2850 |
869 |
Rifle AK-47,M,SKS |
7.62x39mm-API |
2410 |
735 |
Rifle AK-47,M,SKS |
7.62x39mm-Ball/Steel Core |
2410 |
735 |
WHICH PLATE SIZE IS RIGHT FOR ME?
Personal preference is the single most important determining factor when choosing the right size armor for any individual. The wearer must feel comfortable in whatever system and size they choose in order to maximize the effectiveness of any armor system. That having been said, the prior standard for all plates was 10”x12”. Military specifications now include a full range of sizes from Small to Extra Large, however size Medium, 9.5”x12.5” is considered the ideal fit for the 95th percentile, meaning that Medium is designed to fit 95% of all military personnel.
In order to provide a more easily discernible size chart we focus on the height of an individual as the most important factor in determining proper fitment. See the outline below for a general height / plate size reference. Keep in mind, personal build, and personal preference are the most important factors.
If you purchase a set of plates that you feel is the wrong fit, call us for guidance and to get a quick and easy exchange.
SAPI Sizing Specifications
Size |
Dimensions |
Avg Weight |
Height |
Small |
8.5”x11.5” |
6.5 lbs |
<5’5”-5’8” |
Medium |
9.5”x12.50” |
7.5 lbs |
5‘8” - 6’ |
Large |
10.25”x13.25” |
8.5 lbs |
6’1” - 6’4” |
XL |
11”x14” |
9.75 lbs |
>6’4” |
Swimmer Sizing Specifications
Size |
Dimensions |
Avg Weight |
Height |
Small |
8”x10” |
4.8 lbs |
<5’5”-5’8” |
Medium |
10”x12” |
6.5 lbs |
>5’8”
|
Hoplite ACH Level III Rifle Rated Helmet
Stop Rounds up to NATO M80 (7.62×51) round at 2100 ft/sec (640 m/s)
FULLY-LOADED HIGH-CUT NOMINAL WEIGHT
- Medium 3.1 lbs. / 1.43 Kg;
- Large 3.3 lbs. / 1.5 Kg;
- X-Large 3.5 lbs. / 1.61 Kg
Introducing the game changing AireLock Liner System.
The Pads-free AIRELOCK is a game changer in terms of user safety, comfort and ergonomics. With its all new quick-dial system, less than 50% of the liner touches the user’s head, creating a floating effect that delivers maximum comfort over extended periods of use.
The advanced silent dial system and premium chinstrap deliver a solution that is ideal for front line users. The AIRELOCK is the ultimate liner system for modern day operations. The AireLock Liner System is versatile and modular, and built to allow every user the ability to customize their own head protection configurations specific to their needs.
FULL LEVEL III RIFLE RATED ACH
- High Cut Shell
- Velcro
- Bungee
- M-Lock Aire Rail System
- Aire Mount NVG Shroud
- Aire Support Prime Cushion System
- Adjustable CAM Retention System
All Helmets Are Custom Made to Order
5 Week Estimated Lead Time
RIFLE THREATS DEFEATED
Weapon |
Ammunition |
Velocity |
5.56x45 |
M193 |
2,986 fps |
7.62x39 |
M1943 |
2.676 fps |
7.62x51 |
M80 Ball |
2,100 fps |
PISTOL THREATS DEFEATED
Weapon |
Ammunition |
STRIKING VELOCITY
ft/s
|
STRIKING VELOCITY
m/s
|
9mm |
50-grain USM4
|
2490 |
759 |
9mm |
Fiocchi, 115-grain FMJ
|
1540 |
469 |
9mm |
124-grain Hydra-Shok JHP |
1230 |
375 |
9mm
|
124-grain FMJ
|
1425 |
434 |
9mm |
124-grain FMJ Steel
|
1262 |
385 |
.357 |
100-grain Frangible SF |
1774 |
533 |
.357 |
115-grain JHP |
1645 |
501 |
.357 |
125-grain SIG FMJ FN |
1475 |
450 |
.357 |
125-grain GDHP
|
1454 |
443 |
.40-cal |
95-grain S&W HP
|
1697 |
517 |
.40-cal |
115-grain S&W JHP
|
1249 |
381 |
.40-cal |
180-grain S&W JHP
|
1098 |
35 |
.44 Magnum
|
240-grain SJHP
|
1412 |
430 |
HOW TO FIT YOUR HELMET
Getting the right fit is important for performance and comfort. Use a tape measure and caliper to take measurements. The wearer MUST be seated in an upright position for proper fitting. See the illustrations for correct measuring points.
NOTE: If any measurement falls on the dividing line between sizes, select the larger size.
Small |
|
UP TO 7¼" / 184 mm |
Length |
UP TO 6½" / 162 mm |
Width |
UP TO 21¼" / 538 mm |
Circumference |
Medium |
|
7¼" / 184 mm to 7¾" / 198 mm |
Length |
UP TO 6½" / 162 mm |
Width |
21¼" / 538 mm to 22½" / 573 mm |
Circumference |
Large |
|
7¾" / 198 mm to 8¼" / 210 mm |
Length |
UP TO 6½" / 162 mm |
Width |
22½" / 573 mm to 23½"/ 597 mm |
Circumference |
Extra-Large |
|
8¼" / 210 mm and over |
Length |
6½" / 162 mm and over |
Width |
23½"/ 597 mm and over |
Circumference |
Questions? Call 855-ARMOR-01
