Body Armor SAPI Plates- Level IV (26605)
NIJ 06 Certified Level IV SAPI Plates (26605)
~SOLD IN PAIRS~

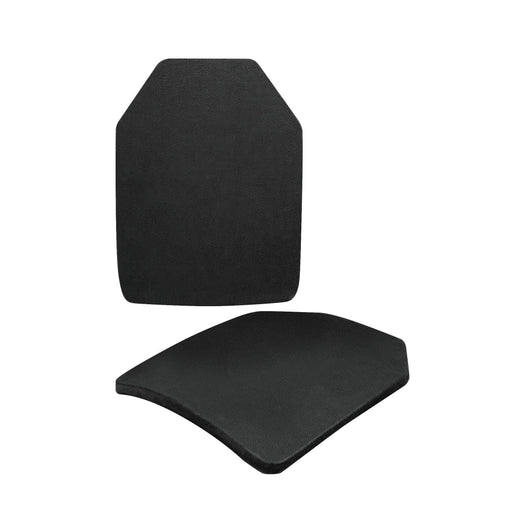

The 26605 is a Triple-curve hard armor, Multi-Hit, Stand Alone, SAPI plate certified under the NIJ 0101.06 Level IV Standard. Manufactured from high-density, reinforced alumina ceramic core (Al2O3) backed with lightweight layered polymer composite fiber and finished in a black Cordura Nylon Covering. A foam pad is affixed to the Strike Face in order to protect against severe and repeated drops. NIJ standards require 2 drops. These plates must pass the internal 10 drop test and are inspected via X-Ray prior to environmental and ballistic testing.
The 26605 is a newer, upgraded version of the 26148 and 26135 series with a lighter backer plate, enhanced ceramics and a foam pad on the face to help protect against severe drops
The materials used in the fabrication of these plates allows for projectiles to be absorbed within the plate itself, preventing dangerous spall as is common with steel plates. Don't rely on your carrier to stop high speed bullet fragmentation
All our Hard Armor Plates are Made in the USA by LTC, Leading Technology Composites, the worlds largest and most respected body armor manufacturer.
Specific weights and sizes are listed below. All figures are nominal. Some variation based on manufacturing tolerance may apply.
These plates fit perfectly in a Crye JPC 1.0 or 2.0 SAPI cut. Match plate size to carrier size.
Fits all standard carriers of the same size. Match plates to carrier size.
Some popular items/sizes may incur a 4-8 week lead time.
Small- 8.5”x11.5” 6.5 lbs
Medium- 9.5”x12.50” 7.5 lbs
Large- 10.25”x13.25” 8.5 lbs
XL- 11”x14” 9.75 lbs
- Thickness: 1"
- Level: IV
|Rifle M-1||30.06 AP M2||2880||878|
|Rifle FN FAL||7.62x51mm - M80 Ball||2780||847|
|Rifle FN FAL||7.62x51mm - M61 AP||2780||847|
|Rifle AK-47,M,SKS||7.62x39mm-Ball/Steel Core||2400||732|
Weights and measurements are nominal
