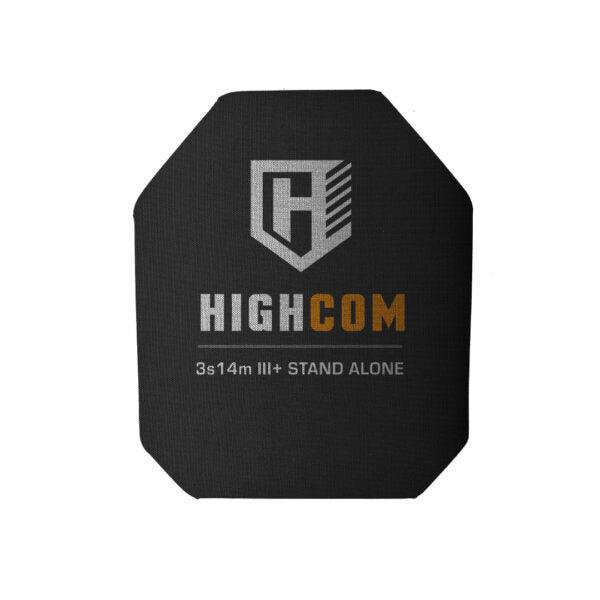

HighCom Guardian 3s14m Armor
The HighCom Guardian 3s14m Armor is a lightweight ceramic plate with UHMWPE backing. It is multi-shot rated for rifle threats.
Manufactured using proprietary XTclave™ technology, the 3s14m weighs 3.61 lbs and is 1.20” thick. It offers a profile built for endurance.
This plate fits into most tactical vests or plate carriers. Its design focuses on reducing fatigue during extended operational wear.
The combination of advanced materials ensures that users don't sacrifice speed for security. It is optimized for high-mobility roles.
KEY FEATURES:- Ultra-Lightweight construction for all-day use.
- High-performance multi-threat capable engineering.
- Enhanced mobility via ergonomic design.
- Advanced XTclave™ composite processing.
- Durable 1000D Cordura exterior finish.
SPECIFICATIONS
- Protection: Level III+ stand alone high-velocity rifle rounds
- NIJ Standard 0101.06 TESTED: This product has been independently tested by an NVLAP accredited NIJ approved laboratory to meet or exceed ballistic resistance as specified under NIJ Standard 0101.06
- Process: Made in XTclave™ ultra high-pressure consolidation
- Material: Ceramic with UHMWPE backing
- Areal Density: 5.48 psf, 26.75 kg/m²
- Thinness: 1.20” or 30 mm
- Exterior Cover: 1000D CORDURA®, Textured Nylon
- Cuts: Shooter, SAPI (10”x12” shooter is considered nominal 9.5”x11.5” dimensions)
- Warranty: 5 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship
These specifications reflect the rigorous standards used to produce reliable body armor components for professional operators.
Every plate undergoes strict quality control to ensure consistency in density and thickness across the entire ballistic surface.
BALLISTIC ROUNDS TESTED
| STANDARD | WEAPON | PROJECTILE | GR | VEL FT/S | VEL M/S | (+/- FT/S) |
|---|---|---|---|---|---|---|
| NIJ 0101.06 | Rifle | 7.62mm FMJ, Steel Jacketed Bullets (M80) | 147 | 2780 | 847 | (+/- 30) |
| Special | Rifle | 5.56 x 45mm M193 FMJ | 55 | 2985 | 910 | (+/- 50) |
| Special | Rifle | 7.62 x 54R (LPS) | 147 | 2716 | 840 | (+/- 98) |
| Special | Rifle | 7.62 x 39mm MSC (M43) | 123 | 2296 | 700 | (+/- 98) |
| Special | Rifle | 5.56 x 45mm M855 (Green Tip) | 62 | 3018 | 920 | (+/- 98) |
| Special | Rifle | 5.45 x 39mm MSC (7N6) | 53 | 3000 | 915 | (+/- 98) |
