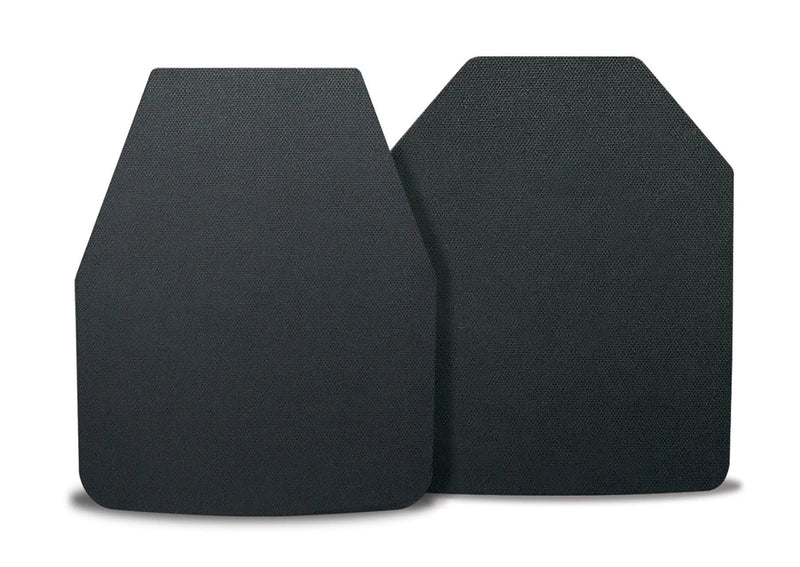

NIJ Certified Level IV Lightweight Body Armor (26300)
~SOLD IN PAIRS~
The 26300 is a high end Level IV Lightweight Body Armor solution. It features a Boron Carbide core and Dyneema HB212 backer.
The result is a lightweight, Triple Curve, NIJ 04 certified plate. It defeats multiple hits of 5.56, 7.62x39, and 7.62x51mm rounds.
It also stops 7.62x54R and 30.06 AP M2. This is an extraordinary plate at a highly discounted price.
Fits all standard carriers.
SAPI: Small, Medium, Large, X-Large
Swimmer: 8x10, 10x12
Some popular items/sizes may incur a 4-8 week lead time.

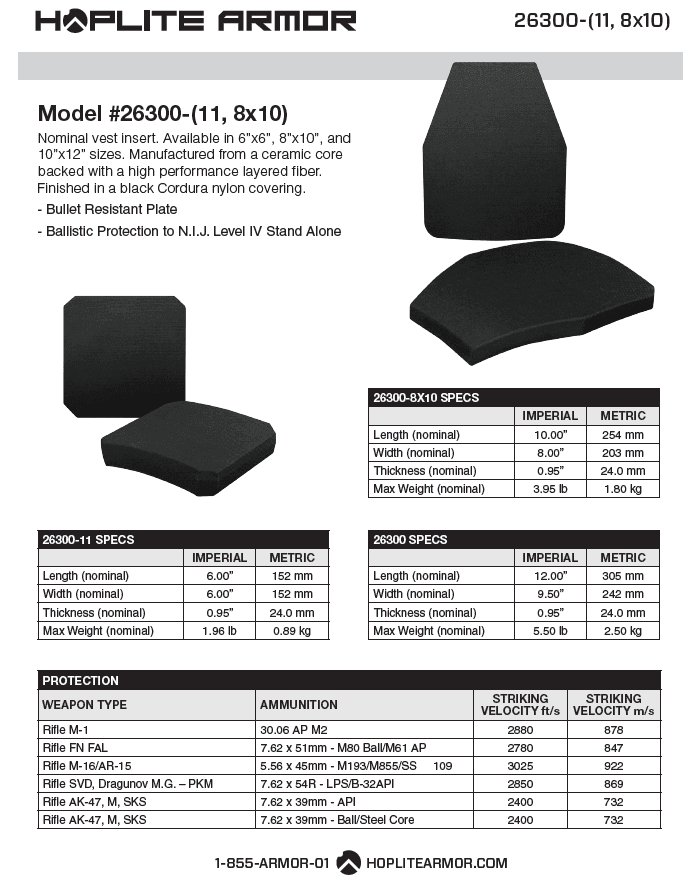

SAPI Specs:
-
Small- 8.75”x11.75” 5 lbs
- Medium- 9.5”x12.50” 5.75 lbs
- Large- 10.25”x13.25” 6.85 lbs
- XL- 11”x14” 7.5 lbs
Swimmer Specs:
- Weight: 3.95 - 5.5 lbs (nominal)
- Thickness: 1"
- Level: IV
Rounds Defeated:
| Weapon | Ammunition |
STRIKING VELOCITY ft/s |
STRIKING VELOCITY m/s |
| Rifle M-1 | 30.06 AP M2 | 2880 | 878 |
| Rifle FN FAL | 7.62x51mm - M80 Ball | 2780 | 847 |
| Rifle FN FAL | 7.62x51mm - M61 AP | 2780 | 847 |
| Rifle M-16/AR-15 | 5.56x45mm-M193/M855 | 3180 | 969 |
|
Rifle SVD,Dragunov M.G.-PKM |
7.62x54R-LPS | 2850 | 869 |
|
Rifle SVD,Dragunov M.G.-PKM |
7.62x54R-L/LPS/B-32 API | 2850 | 869 |
| Rifle AK-47,M,SKS | 7.62x39mm-API | 2400 | 732 |
| Rifle AK-47,M,SKS | 7.62x39mm-Ball/Steel Core | 2400 | 732 |
WHICH PLATE SIZE IS RIGHT FOR ME?
Personal preference is the single most important factor when choosing armor for any individual. The wearer must feel comfortable.
The prior standard was 10”x12”. Military specs include Small to Extra Large. Medium is the ideal fit for the 95th percentile.
We focus on height to determine proper fitment. See the outline below for a general height reference. Personal build matters most.
If you purchase a set of plates that you feel is the wrong fit, call us for guidance and to get a quick and easy exchange.
SAPI Sizing Specifications
| Size | Dimensions | Weight | Height |
|---|---|---|---|
| Small | 8.5”x11.5” | 6.5 lbs | <5’5”-5’8” |
| Medium | 9.5”x12.50” | 7.5 lbs | 5‘8” - 6’ |
| Large | 10.25”x13.25” | 8.5 lbs | 6’1” - 6’4” |
| XL | 11”x14” | 9.75 lbs | >6’4” |
Swimmer Sizing Specifications
| Size | Dimensions | Weight | Height |
|---|---|---|---|
| Small | 8”x10” | 4.8 lbs | <5’5”-5’8” |
| Medium | 10”x12” | 6.5 lbs |
>5’8” |
Weights and measurements are nominal
