Body Armor Swimmer Plate (Single)- Level IV (26625)
Free Shipping On Orders Over $399
Price Match Guarantee
Lifetime Armor Warranty
NEW MODEL!

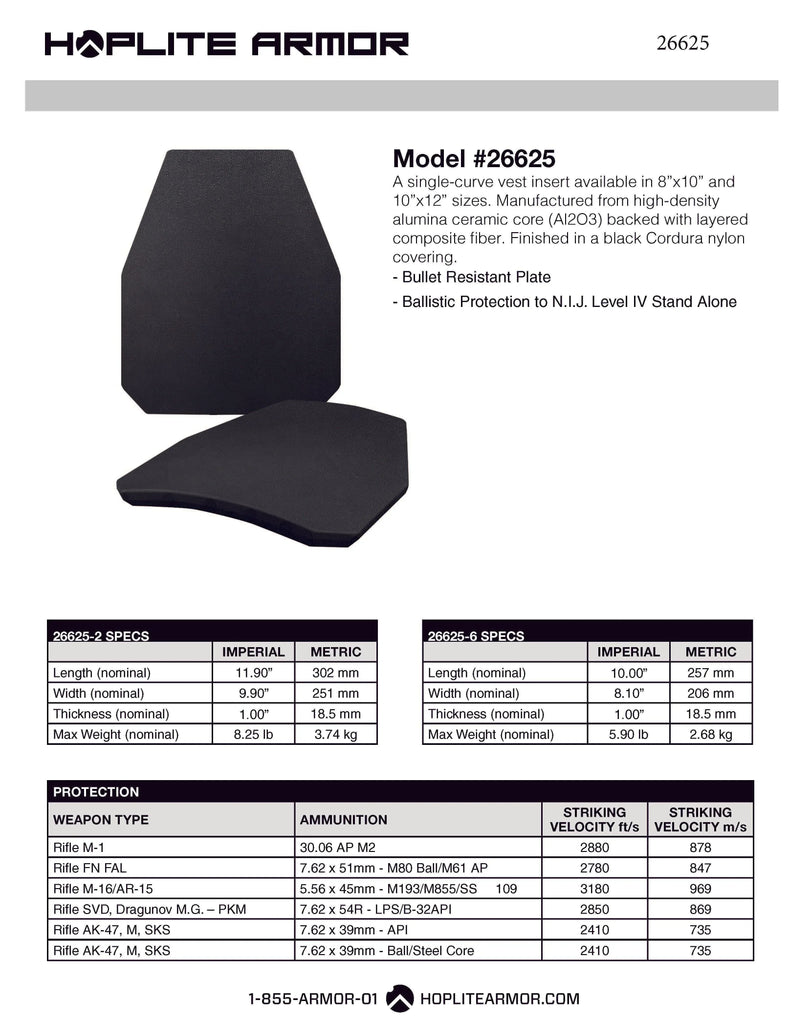

NIJ 0101.06 Certified Level IV Swimmer Plate (26625)
~SOLD AS A SINGLE PLATE~
Each Level IV Swimmer Plate represents the best deal for top quality armor.
Materials allow projectiles to be absorbed, preventing dangerous spall common with steel plates.
Don't rely on your carrier to stop high speed fragmentation.
Our hard armor is certified NIJ 0101.06 Stand Alone to handle high-velocity threats.
Manufactured from high-density alumina ceramic core (Al2O3) with layered polymer composite fiber.
These plates (26625) are NIJ CERTIFIED to 0101.06 standards.
Compared to 26225 plates which are NIJ 0101.04 certified.
All our Hard Armor Plates are Made in the USA by LTC.
They are the worlds largest and most respected armor manufacturer.
Specific weights and sizes are listed below. All figures are nominal.
Some variation based on manufacturing tolerance may apply.
Fits all standard carriers. 8x10 small carrier. 10x12 medium carrier.
Some popular items/sizes may incur a 4-8 week lead time.
Specs:
- Weight: 5.9 Lbs, 8.25 lbs
- Thickness: 1.00"
- Level: IV
Rounds Defeated:
| Weapon | Ammunition |
STRIKING VELOCITY ft/s |
STRIKING VELOCITY m/s |
| Rifle M-1 | 30.06 AP M2 | 2880 | 878 |
| Rifle FN FAL | 7.62x51mm - Ball/AP | 2780 | 847 |
| Rifle M-16/AR-15 | 5.56x45mm-M193/M855/ss109 | 3025 | 922 |
|
Rifle SVD,Dragunov M.G.-PKM |
7.62x54R-L/LPS/B-32 API | 2850 | 869 |
| Rifle AK-47,M,SKS | 7.62x39mm-API | 2410 | 735 |
| Rifle AK-47,M,SKS | 7.62x39mm-Ball/Steel Core | 2410 | 735 |
Sizes:
8" x 10"
10" x 12"
Finished in Cordura Nylon Covering.
WHICH PLATE SIZE IS RIGHT FOR ME?
Personal preference is the most important factor when choosing armor.
The wearer must feel comfortable to maximize effectiveness.
The prior standard for all plates was 10”x12”.
Military specs now include Small to Extra Large.
Medium (9.5”x12.5”) fits 95% of military personnel.
We focus on height as the main factor for proper fitment.
See the outline below for general height reference.
Custom build and preference are still essential factors.
If the fit is wrong, call us for an easy exchange.
SAPI Sizing Specifications
| Size | Dimensions | Height | |
|---|---|---|---|
| Small | 8.5”x11.5” | <5’5”-5’8” | |
| Medium | 9.5”x12.50” | 5‘8” - 6’ | |
| Large | 10.25”x13.25” | 6’1” - 6’4” | |
| XL | 11”x14” | >6’4” |
Swimmer Sizing Specifications
| Size | Dimensions | Height | |
|---|---|---|---|
| Small | 8”x10” | <5’5”-5’8” | |
| Medium | 10”x12” |
>5’8” |
