NIJ Certified Level IV Triple Curve 10x12 Swimmer Plates (26135)
Free Shipping On Orders Over $399
Price Match Guarantee
Lifetime Armor Warranty
LTC's NIJ Certified Level IV Swimmer Plates (Model 26135) are prized for multi-curve architecture. These 10"×12" plates conform closely to the body for superior comfort.
The swimmer cut provides enhanced shoulder and arm range of motion without sacrificing protection. Multi-hit capable.
Certified to NIJ 0101.04 Level IV Stand Alone, the 26135 uses reinforced alumina ceramic. It features a black chemical-resistant Line-X coating for durability.
At 0.74" thick and 6.7 lbs, ceramic construction absorbs energy within the plate. Sold in pairs. Made in the USA by LTC.

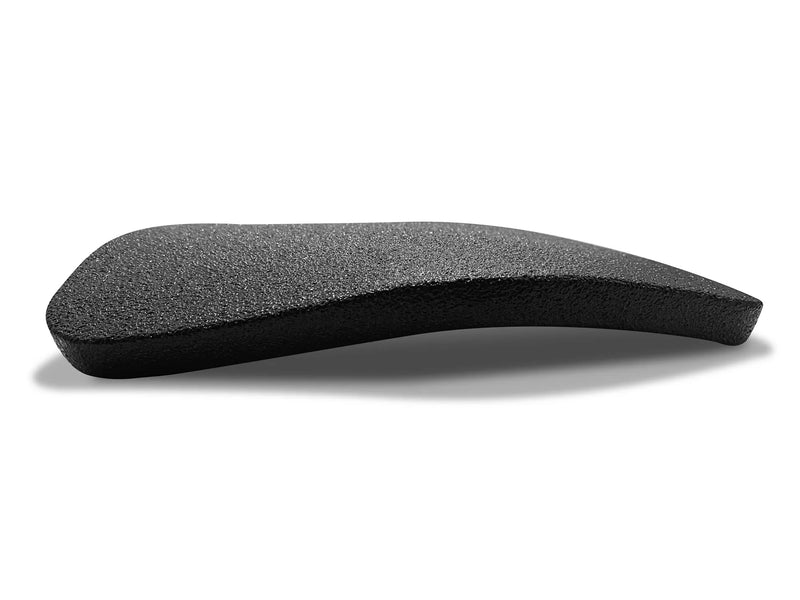

These inserts utilize a triple-curve profile designed for long-wear ergonomics. This shape distributes weight evenly across the torso to reduce fatigue during movement.
The advanced swimmer cut geometry is optimized for specialized tactical roles. It allows for a deeper pocket when shouldering a long gun or drawing a sidearm.
Built by Leading Technology Composites, every component meets strict quality control. The layered polymer composite backing provides structural integrity against high-velocity impacts.
The Line-X finish acts as a barrier against moisture and UV exposure. This ensures the internal ceramic components remain protected in harsh field environments.

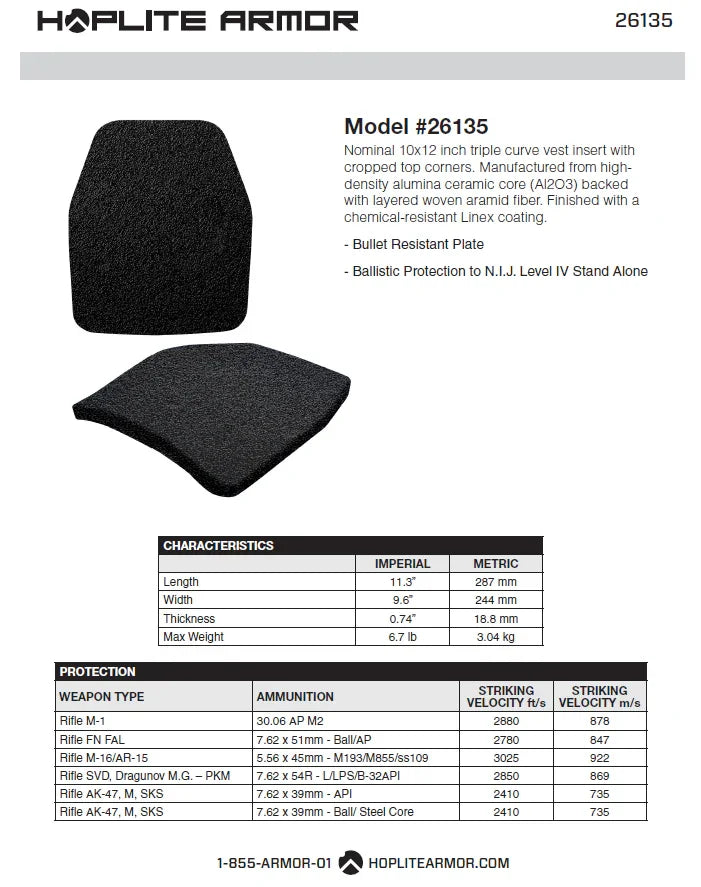

Technical Specifications for NIJ Certified Level IV Swimmer Plates
- Protection Level: NIJ 0101.04 Level IV Stand Alone
- Size: 10" × 12" Triple Curve Swimmer Cut
- Weight: 6.7 lbs per plate
- Thickness: 0.74"
- Build: Reinforced Alumina Ceramic (Al₂O₃) + Layered Polymer Composite
- Cover: Black Chemical-Resistant Line-X
- Multi-Hit Capable
- Made in the USA by LTC, Leading Technology Composites
Rounds Defeated
- 30-06 AP M2 — 2880 ft/s
- 7.62×51mm NATO Ball/AP — 2780 ft/s
- 5.56×45mm M193, M855, M855A1 — 3025 ft/s
- 7.62×54R B-32 API — 2850 ft/s
- 7.62×39mm API — 2410 ft/s
Users should inspect plates regularly for signs of wear. Proper storage in a plate carrier ensures the longevity of the ballistic composite materials.
These armor systems are intended for law enforcement and security professionals. The 10x12 dimensions fit most standard carriers designed for swimmer cut profiles.
All figures nominal. Some popular items/sizes may incur a 4-8 week lead time.
