NIJ 06 Certified Level IV Swimmer / SAPI Plate Combo (26605)
Includes one SAPI and one Swimmer plate
~SOLD IN PAIRS~
Absolutely our Top Recommendation. This is the perfect combination of coverage and mobility. While the difference between Swimmer and SAPI plates is only a few square inches of coverage area, the cut allows for a far better range of motion.

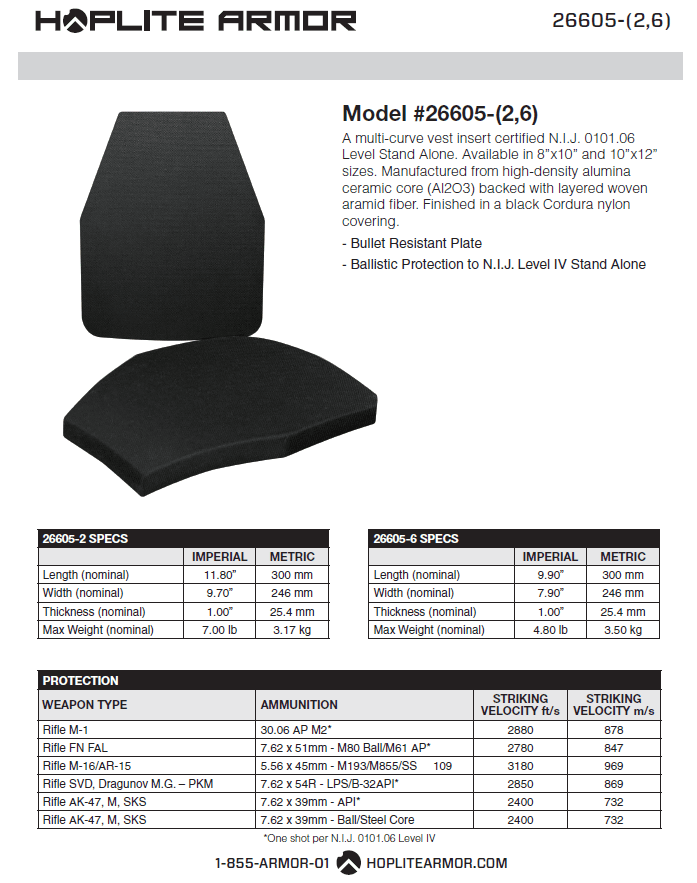

The 26605 is a Triple-curve hard armor, Multi-Hit, Stand Alone plate certified under the NIJ 0101.06 Level IV Standard. Manufactured from high-density, reinforced alumina ceramic core (Al2O3) backed with lightweight layered polymer composite fiber and finished in a black Cordura Nylon Covering. A foam pad is affixed to the Strike-Face in order to protect against severe drops. NIJ standards require 2 drops. These plates must pass the internal 10 drop test and are inspected via X-Ray prior to environmental and ballistic testing.
The 26605 is a newer, upgraded version of the 26148 and 26135 series with a lighter backer plate, enhanced ceramics and a foam pad on the face to help protect against severe drops
The materials used in the fabrication of these plates allows for projectiles to be absorbed within the plate itself, preventing dangerous spall as is common with steel plates. Don't rely on your carrier to stop high speed bullet fragmentation
All our Hard Armor Plates are Made in the USA by LTC, Leading Technology Composites, the worlds largest and most respected body armor manufacturer.
Specific weights and sizes are listed below. All figures are nominal. Some variation based on manufacturing tolerance may apply.
Fits all standard Medium sized carriers.
Some popular items/sizes may incur a 4-8 week lead time.
Sizes:
-
Small 8.75"x11.75” SAPI (6.5 lbs.) / 8"x10" Swimmer (4.8 lbs.)
-
Medium 9.25"x 12.25" SAPI (7.5 lbs.)/ 10"x12" Swimmer (7 lbs.)
-
Large 10"x13” SAPI (8.5 lbs.) / 10"x12" Swimmer (7 lbs.)
-
XL 11"x 14" SAPI (9.75 lbs.)/ 10"x12" Swimmer (7 lbs.)
SPECS
-
Thickness: 1"
-
Level: IV
Weights and measurements are nominal
Rounds Defeated:
| Weapon | Ammunition |
STRIKING ft/s |
STRIKING m/s |
| Rifle M-1 | 30.06 AP M2 | 2880 | 878 |
| Rifle FN FAL | 7.62x51mm - M80 Ball | 2780 | 847 |
| Rifle FN FAL | 7.62x51mm - M61 AP | 2780 | 847 |
| Rifle M-16/AR-15 | 5.56x45mm-M193/M855/M855A1 | 3180 | 969 |
|
Rifle SVD,Dragunov M.G.-PKM |
7.62x54R-LPS | 2850 | 869 |
|
Rifle SVD,Dragunov M.G.-PKM |
7.62x54R-L/LPS/B-32 API | 2850 | 869 |
| Rifle AK-47,M,SKS | 7.62x39mm-API | 2400 | 732 |
| Rifle AK-47,M,SKS | 7.62x39mm-Ball/Steel Core | 2400 | 732 |
WHICH PLATE SIZE IS RIGHT FOR ME?
Personal preference is the single most important determining factor when choosing the right size armor for any individual. The wearer must feel comfortable in whatever system and size they choose in order to maximize the effectiveness of any armor system. That having been said, the prior standard for all plates was 10”x12”. Military specifications now include a full range of sizes from Small to Extra Large, however size Medium, 9.5”x12.5” is considered the ideal fit for the 95th percentile, meaning that Medium is designed to fit 95% of all military personnel.
In order to provide a more easily discernible size chart we focus on the height of an individual as the most important factor in determining proper fitment. See the outline below for a general height / plate size reference. Keep in mind, personal build, and personal preference are the most important factors.
If you purchase a set of plates that you feel is the wrong fit, call us for guidance and to get a quick and easy exchange.

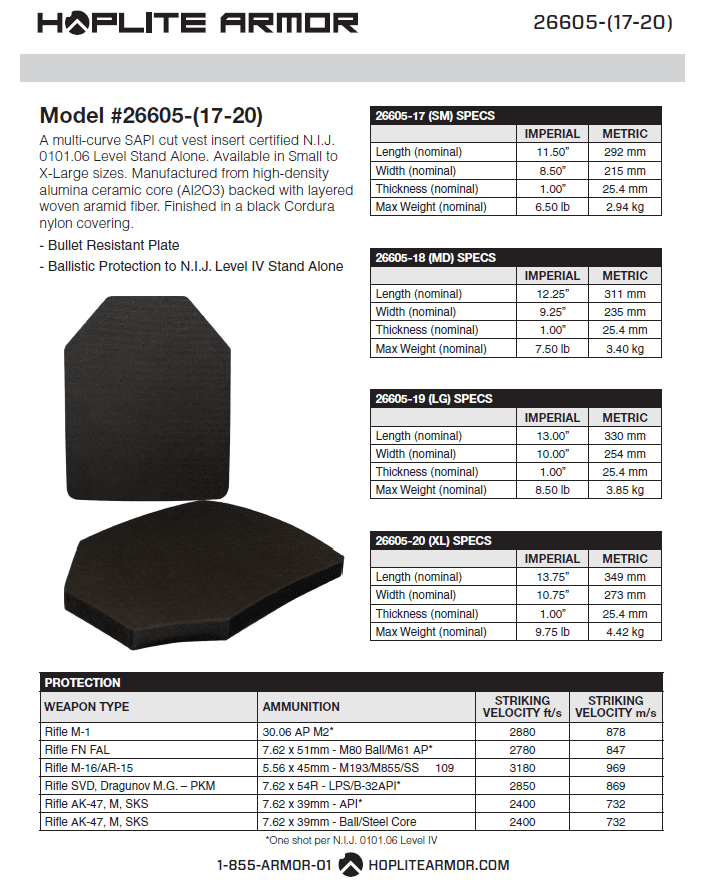

SAPI Sizing Specifications
| Size | Dimensions | Weight | Height |
|---|---|---|---|
| Small | 8.5”x11.5” | 6.5 lbs | <5’5”-5’8” |
| Medium | 9.5”x12.50” | 7.5 lbs | 5‘8” - 6’ |
| Large | 10.25”x13.25” | 8.5 lbs | 6’1” - 6’4” |
| XL | 11”x14” | 9.75 lbs | >6’4” |
Swimmer Sizing Specifications
| Size | Dimensions | Weight | Height |
|---|---|---|---|
| Small | 8”x10” | 4.8 lbs | <5’5”-5’8” |
| Medium | 10”x12” | 6.5 lbs |
>5’8” |
Restrictions
Restrictions on the Purchase, Ownership, or Possession of Body Armor are as follows:
It is a violation of United States Federal Law for a person convicted of a violent felony to purchase, own, or possess body armor. In addition, various states also have enacted legislation restricting the purchase, ownership, or possession of body armor by persons convicted of drug crimes, certain other felonies, or other violent crimes. By purchasing body armor from Hoplite Armor, LLC you acknowledge and certify that:
- You have not been convicted of a felony.
- The end user has not been convicted of any other crime that would restrict their ability to purchase, own, or possess body armor under any applicable Local, State, or Federal law ordinance or restriction.
- The end user will not use any body armor purchased from Hoplite Armor, LLC for any criminal purpose.
- The end user is over the age of 18.
- The end user will not transport or use any Hoplite Armor products outside of the United States.
Hoplite Armor, LLC reserves the right, in its sole discretion, to refuse the sale of body armor to any person or entity. Additionally, the online sale of body armor to residents of Connecticut and NY is strictly prohibited, unless the sale is made to certain law enforcement or military personnel, or through a face-to-face transaction.
Hoplite Armor does not ship any products outside of the United States in compliance with ITAR regulations. By purchasing, owning, or possessing Hoplite Armor systems, the end user certifies that no Hoplite Armor products will be transported or used outside of the United States.
All statements contained herein, or in any other related Hoplite publication of any kind, are not designed to provide legal counsel in any way, shape or form. It is strongly recommended that customers conduct a reasonable amount of Due Diligence prior to purchasing, owning or possessing body armor in order to avoid any legal ramifications.
***DUE TO THE LIFE-SAVING NATURE OF ARMOR PRODUCTS, ALL SALES ARE FINAL***
Hoplite Armor Lifetime Body Armor Warranty Terms and Conditions:
Hoplite Armor LLC stands behind the reliability and quality of the products we sell. In the unfortunate event that you are shot while wearing products purchased from us, we will replace damaged equipment at no cost to you at any time, as long as a valid police report is provided. This covers all of our body armor products, which includes Body Armor, Plate Carriers, Pouches/Accessories and Apparel.
Proof of purchase required, only applies to original purchaser, and product must be purchased from Hoplite Armor LLC to qualify. Police report or internal report (if worn in the line of duty) is required as proof of the incident. Picture of the label and serial number is required and must match the serial number associated with the order in our system. Only the damaged product(s) will be replaced. We will replace it with the same product, if unavailable we may replace it with a similar product or reserve the right to issue store credit equal to the original purchase price.
Warranty only applies to legitimate instances of self defense. Does not cover intentional damage or damage resulting from gross negligence. For example, we will replace your armor if you get shot in a home defense incident. We will not replace it if you shoot it intentionally yourself for any reason, or have your friends shoot you while wearing it. We will not replace it if you are shot while committing a crime such as robbing a bank or convenience store. This warranty does not cover theft.
